Why compressed air leaks are the biggest efficiency loss in most plants, and how ultrasonic detection finds what a walkthrough misses.
Compressed air is often called the fourth utility,
and it’s usually the least efficient one. A typical industrial
compressed air system wastes a large share of its energy before the
air ever reaches a tool, mostly through leaks nobody’s looking for.
A quarter-inch leak at 100 psi can waste enough compressed air
annually to cost thousands of dollars in electricity — and
most plants have dozens of leaks scattered across fittings, hoses,
and quick-connects that accumulate into a meaningful percentage of
total compressor output. Leaks are also progressive: a small leak
today tends to get worse, not better, without repair.
| Method | Limitation |
|---|---|
| Listening during a walkthrough | Only catches large leaks, and only over background noise |
| Soap solution spray | Effective but requires checking each joint individually |
| Ultrasonic acoustic detector | Detects high-frequency leak signatures during normal production noise |
An ultrasonic leak survey during normal operation — rather
than during a quiet shutdown — tends to find leaks that
wouldn’t otherwise get flagged, since some leaks change in a
pressurized, running system.

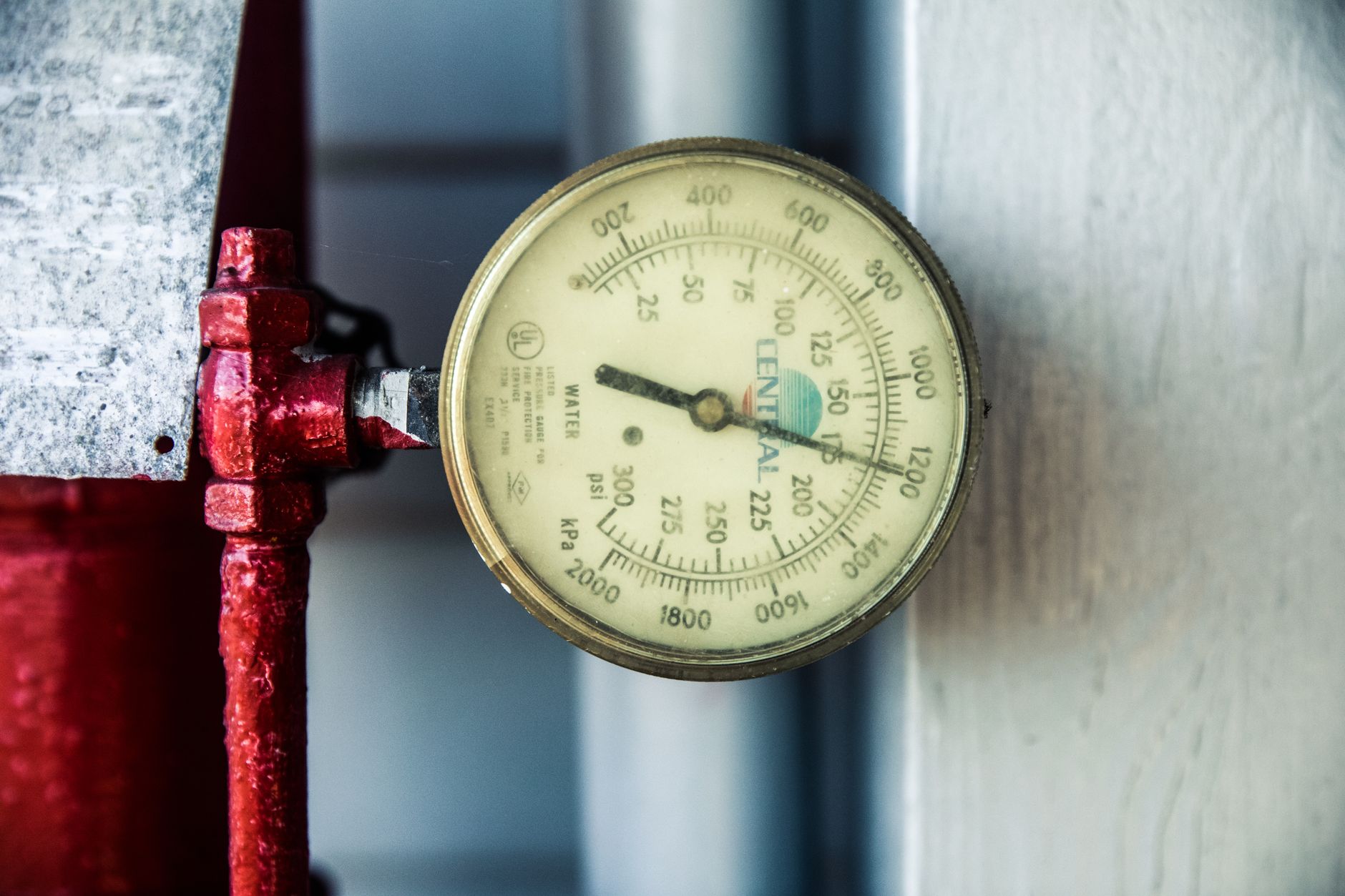

When a tool at the end of the line loses pressure, the instinct
is often to run the compressor harder. But undersized piping,
clogged filters, and long distribution runs can all cause pressure
drop that no amount of additional compressor capacity actually
fixes — it just burns more energy compensating for a
distribution problem.
Running a system at higher pressure than any single application
actually requires increases consumption across every point of use on
the system, not just the one that needed the higher pressure.
Matching system pressure to the highest genuine requirement —
rather than padding it “just in case” — is one of the simpler
efficiency gains available in most plants.
Compressed air system efficiency complements the equipment
fundamentals covered in our related guide on
pneumatic systems and
components, part of SCMEP’s
Maintenance and Reliability
training catalog. As a NIST Manufacturing
Extension Partnership affiliate serving South Carolina manufacturers
since 1989, our focus is finding the leaks and pressure losses
that are quietly inflating an electric bill.
If your facility hasn’t run a compressed air leak survey recently,
you can browse the Maintenance
and Reliability training catalog or email the training team.
A quarter-inch leak at 100 psi can waste thousands of dollars in electricity annually, and most plants have dozens of leaks that accumulate into a significant percentage of total compressor output. Leaks also tend to worsen over time.
Listening during a walkthrough only catches large leaks over background noise. Ultrasonic detectors pick up high-frequency leak signatures during normal production noise, catching leaks a walkthrough would miss.
Pressure drop is often caused by undersized piping, clogged filters, or long distribution runs — a distribution problem that more compressor output can’t fix, it just burns more energy compensating.
Running the whole system at a higher pressure than any single application requires, which increases consumption at every point of use rather than just the application that needed the higher pressure.
