A perfectly calibrated gauge can still be useless if it can't repeat its own results. What Gage R&R actually separates out — repeatability vs. reproducibility — and why MSA has to happen before SPC means anything.
SPC assumes the measurement system telling you a part is in
tolerance is actually trustworthy. Measurement System Analysis is the
automotive core tool that checks that assumption first — and it’s the
one core tool most likely to get skipped because it feels like
measuring the measurement, not the part.
Measurement System Analysis (MSA) evaluates whether a measurement
system — the gauge, the operator, and the procedure together — produces
results reliable enough to trust the decisions built on top of them. A
gauge that’s perfectly calibrated but produces wildly different
readings depending on which operator uses it, or how a part is
positioned, isn’t actually a reliable measurement system, even though
the equipment itself passed its own calibration check.
| Component | What it measures |
|---|---|

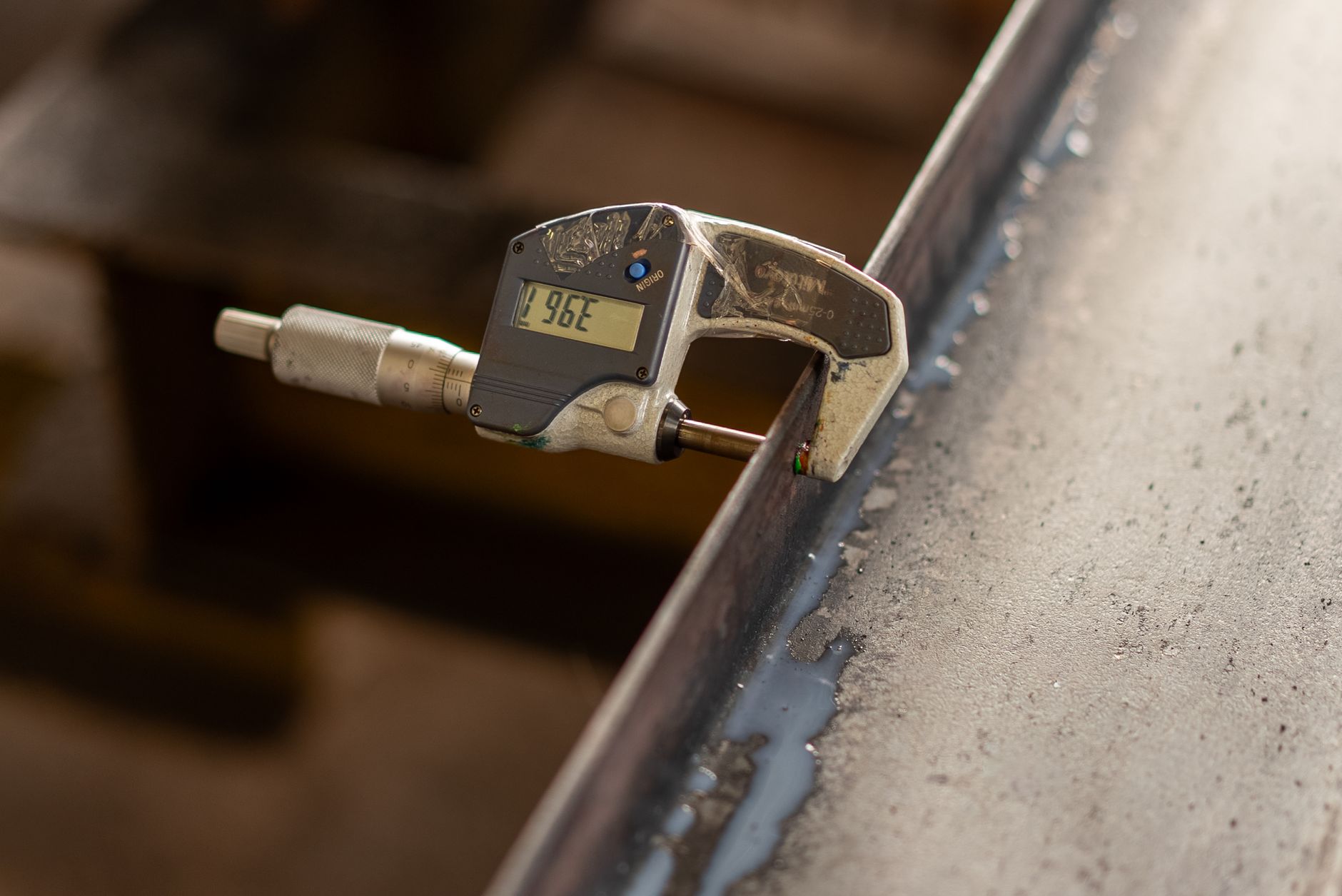

| Repeatability | Variation when the same operator measures the same part multiple times with the same gauge |
| Reproducibility | Variation when different operators measure the same part with the same gauge |

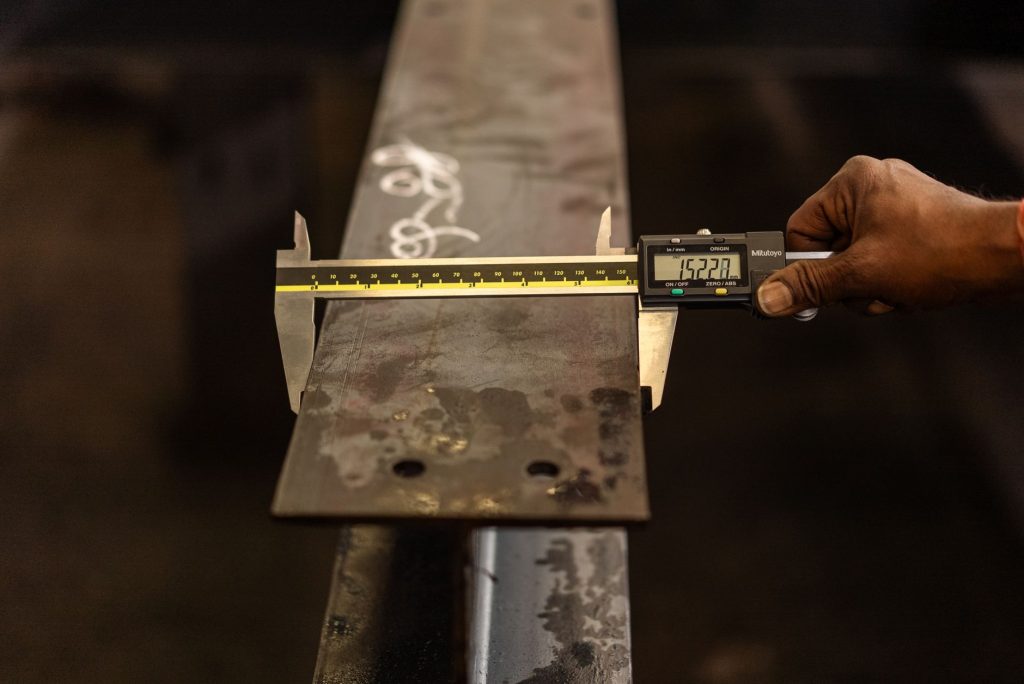

A Gage R&R study runs multiple operators measuring the same set of
parts multiple times each, then statistically separates how much of
the total variation comes from the parts actually differing versus how
much comes from the measurement system itself. The AIAG Measurement
Systems Analysis manual (4th edition) is the standard automotive
industry reference procedure for running and interpreting these
studies — check the manual directly for current acceptance thresholds
rather than relying on secondhand summaries, since specific numeric
cutoffs are worth confirming against the primary source.
MSA sits alongside APQP, PPAP, FMEA, and SPC as one of the five
automotive core tools required under IATF 16949, and it’s arguably the
foundation the others quietly depend on — SPC’s control charts are only
meaningful if the measurement system generating the data points is
itself reliable, and a PPAP submission built on an unreliable gauge is
really just confident-looking bad data.
MSA studies take real time to run properly — multiple operators,
multiple parts, multiple repeat measurements — and the output is a
statistical judgment about the measurement system, not a tangible part
improvement, which makes it an easy activity to compress or skip when
a launch schedule gets tight. That’s exactly backwards: an unreliable
measurement system undermines every downstream quality decision built
on its data, making it one of the worst places to cut corners.
MSA itself isn’t a standalone course in SCMEP’s current catalog —
it’s one of the automotive core tools that builds on the quality
fundamentals in our ISO 9001:2015
Overview. See our related guides on
Statistical Process
Control and FMEA
for the other core tools MSA’s reliable measurement data supports. As a
NIST Manufacturing Extension Partnership affiliate
serving South Carolina manufacturers since 1989, our focus is
making sure a plant’s measurement systems are trustworthy before
building quality decisions on top of them.
If your team is running or improving Gage R&R studies, you can
browse the Quality and Inspection
training catalog or email the training team.
MSA validates that a specific gauge produces trustworthy results; a separate question is whether the lab that calibrated that gauge is itself competent. See our related guide on ISO/IEC 17025 calibration accreditation for what a lab’s scope of accreditation actually confirms.
MSA evaluates whether a measurement system — the gauge, the operator, and the procedure together — produces reliable results, rather than just checking that the gauge itself is calibrated.
Repeatability measures variation when the same operator measures the same part multiple times with the same gauge. Reproducibility measures variation when different operators measure the same part with the same gauge.
Yes — MSA is one of five automotive core tools required under IATF 16949, alongside APQP, PPAP, FMEA, and SPC.
MSA studies take real time to run properly and produce a statistical judgment rather than a tangible part improvement, making them an easy activity to compress under schedule pressure — even though an unreliable measurement system undermines every downstream quality decision built on its data.
