A human inspector gets tired and inconsistent across an 8-hour shift. A machine vision system checks the 10,000th part exactly the same way it checked the first. Rule-based vs. deep-learning vision, and why a vision system fails silently.
A human inspector gets tired, distracted, and inconsistent across an
8-hour shift. A machine vision system checks the 10,000th part exactly
the same way it checked the first one — which is both the whole
argument for automating inspection and the reason a poorly set up
system fails silently instead of obviously.

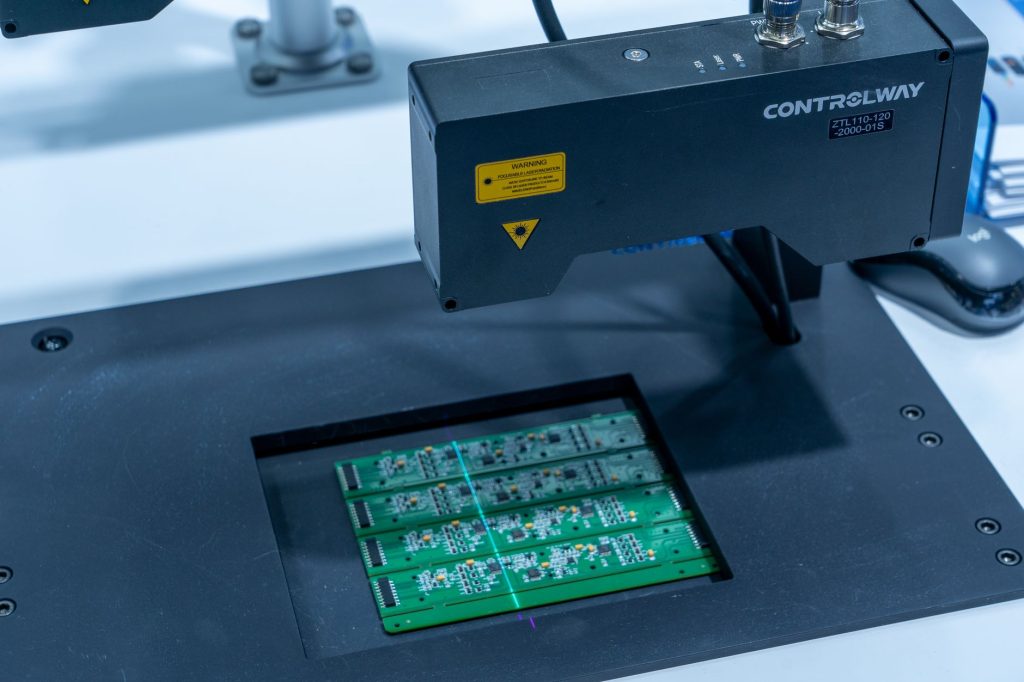

A machine vision system combines lighting, one or more cameras, and
image-processing software to automatically inspect parts, check
dimensions, read barcodes or text, or guide a robot’s positioning. The
lighting is often the most underestimated component — inconsistent or
poorly angled lighting can make a perfectly good part look defective,
or worse, let a real defect slip through undetected, regardless of how
good the camera or software is.
| Application | What it does |
|---|---|
| Defect detection | Flags surface flaws, missing features, or contamination against a reference |
| Dimensional gauging | Measures part features optically without physical contact |
| Barcode/OCR reading | Reads labels, codes, or printed text for traceability |
| Robot guidance | Locates parts in a bin or on a conveyor so a robot can pick them accurately |
Traditional machine vision uses rule-based methods — comparing a
part against fixed geometric or color thresholds, a method that works
well for consistent, well-defined defects but struggles with
variation. Deep-learning-based vision inspection, which expanded
significantly starting around 2019, instead learns what “good” and
“defective” look like from a large set of labeled example images,
making it better suited to inconsistent or hard-to-define defects —
but it also requires a substantial, well-curated training image set to
work reliably, which is a real upfront cost most rule-based systems
don’t carry.
A human inspector missing a defect usually shows some sign of
fatigue or distraction that a supervisor can notice. A vision system
drifting out of proper calibration — a camera lens accumulating dust,
lighting degrading, or a part fixture shifting slightly — can keep
running and keep passing parts with no obvious signal that anything’s
wrong, until a downstream customer complaint reveals the gap. Scheduled
calibration checks and periodic re-validation against known-good and
known-bad reference parts are what actually catch this kind of silent
drift.
Machine vision implementation isn’t a standalone course in SCMEP’s
current catalog — it connects directly to the Automation
and Robotics training we offer, particularly for teams integrating
vision-guided robotics. As a NIST Manufacturing
Extension Partnership affiliate serving South Carolina manufacturers
since 1989, our focus is helping plants evaluate whether vision
inspection actually fits a specific application, not selling automation
for its own sake.
If your plant is evaluating machine vision for quality inspection,
you can browse the Automation and
Robotics training catalog or email the training team.
A machine vision system combines lighting, cameras, and image-processing software to automatically inspect parts, check dimensions, read barcodes or text, or guide robot positioning on a production line.
Rule-based vision compares parts against fixed geometric or color thresholds, working well for consistent, well-defined defects. Deep-learning vision learns from labeled example images, handling inconsistent defects better but requiring a substantial training image set.
Inconsistent or poorly angled lighting can make a good part appear defective or let a real defect go undetected, regardless of camera or software quality — it’s one of the most underestimated components of a vision system.
Calibration drift from a dusty lens, degrading lighting, or a shifted part fixture can cause a vision system to keep passing parts incorrectly with no obvious warning sign, which is why scheduled calibration checks against known-good and known-bad reference parts matter.
